Name: WENYAO Quartz Ore Stone Color Sorter Optical Color Sorting Machine for Ore Quartz Select Processing
Brand: Anhui Wenyao Intelligent Photoelectronic Technology Co., Ltd
SKU: WYB2
Price: 12000 USD
Availability: InStock

Casa > produtos > máquina de classificação mineral >

WENYAO Quartz Ore Stone Color Sorter Optical Color Sorting Machine for Ore Quartz Select Processing

Lugar de origem:

Anhui China

Marca:

WENYAO

Certificação:

ISO9001 & CE

Número do modelo:

WYB2

Contacte-nos

Peça umas citações

WENYAO Quartz Ore Stone Color Sorter Optical Color Sorting Machine for Ore Quartz Select Processing

Detalhes do produto

Doença:

novo

Quantidade mínima:

1 unidade

Precisão (%):

≥99,99%

Função:

Cor vegetal que classifica e que separa

Serviço pós-venda:

Telecontrole e coordenadores de Wifi no ultramar disponíveis

Dimensão:

milímetro 1855*1540*1850

Garantia:

2 anos

Sensor:

Japão Toshiba CCD Sensor

Filtro:

CKD & SMC

Peso:

900kg

Termos do pagamento & do transporte

Quantidade de ordem mínima

1 peça

Preço

FOB USD12000/SET

Detalhes da embalagem

Tamanho da embalagem da caixa da madeira compensada (L*W*H): 2550X1720X2050mm

Tempo de entrega

7 a 15 dias úteis

Termos de pagamento

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Habilidade da fonte

230 PCS por mês

PRODUTOS RELACIONADOS

WENYAO Quartz Ore Stone Color Sorter Optical Color Sorting Machine for Ore Quartz Select Processing

Obtenha o melhor preço

WENYAO Adjustable Parameters Fine Sorting for Mineral Industry Ore Color Sorter

Obtenha o melhor preço

WENYAO All Metal Intelligent Magnetic Separator Secondary Screening Metal Sorting Solutions Wasted Metal Color Sorter

Obtenha o melhor preço

Vídeo

Wenyao Simple Operation Belt Mineral Ore Color Separator Machinery Ore Color Sorter

Obtenha o melhor preço

Contacte-nos

+86--13855135585

service@wycolorsorter.com

+86-551-67699185

Contato agora

Descrição do produto

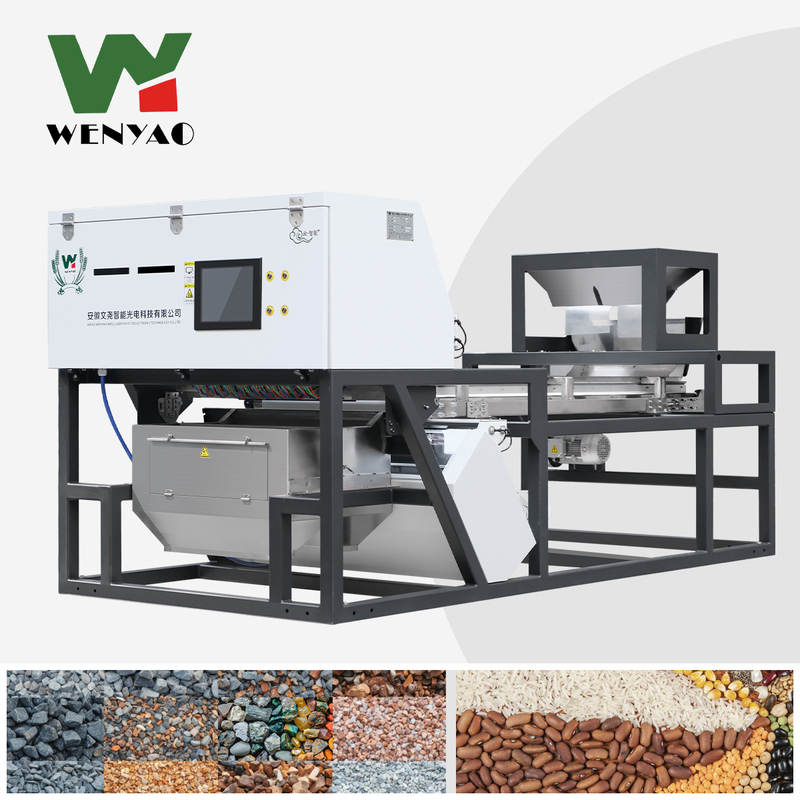

WENYAO Quartz Ore Stone Color Sorter Optical Color Sorting Machine for Ore Quartz Select Processing

In the mining industry, WENYAO Mineral Colour Separator Machine is widely used to upgrade the purity of valuable minerals before they are further processed.Many mineral processing plants rely on the Mineral Colour Separator Machine to separate impurities from raw minerals, which greatly improves the overall production efficiency.
The Mineral Colour Separator Machine has a high throughput capacity, enabling it to handle large quantities of minerals within a short period of time. Compared with traditional separation methods, WENYAO Mineral Colour Separator Machine offers more precise and consistent results, reducing waste and maximizing the utilization of minerals.

WENYAO Quartz Ore Stone Color Sorter Optical Color Sorting Machine for Ore Quartz Select Processing 0

MODEL(Technical Parameters)	WYB2
Channels	128
Output(kg/h) Depend on raw material impurity	800-2000
Sorting Accuracy(%)	≥99.9
Carryover Rate(bad:good)	≥13:1
Power Supply(KW)	2.5
Work Air Pressure(Mpa)	0.2-0.3
Air Consumption(L/min)	600-1200
Voltage	180-240V/50Hz
Weight(kg)	800
Diamension/Size (LWH)mm	318514101480
Package	Wooden Case

Parts Detailed Photo

CCD Camera

*5340 linear CCD camera with high precision allows high definition identification and high speed sorting.

*Most advanced ccd technology can sort materials accurately.

*Toshiba CCD sensor

*American process chip

Self-developed Solenoid Valve

*WenYao mechanical ejector with scientific design can make machine work stably for long time.

*A new type of high frequency valve allows for low consumption of electricity , long life reaction speed, high durability, easy

maintenance, and improved color accuracy.

Adjustable LED Light Source

*Configuration of the special light source allows for ten million kinds of color sorting with a fully adjustable colourspectrum.

*Materials can be sorted according to different configurations which is suitable for various sizes of sorting, no need to change

the light source.

Intelligent computing integrated circuit

With unparalleled high performance and low abilityconsumption, the industry's highest Bandwidth andintegration, processing ability increased 5 times.

Humanized interface

*Humanized touch panel, easy to learn, more convenient to operate.Concise touch panel helps customer operate easily and promptly.*High quality FPGA processing technology, defects of 0.04mm2 can be detected.

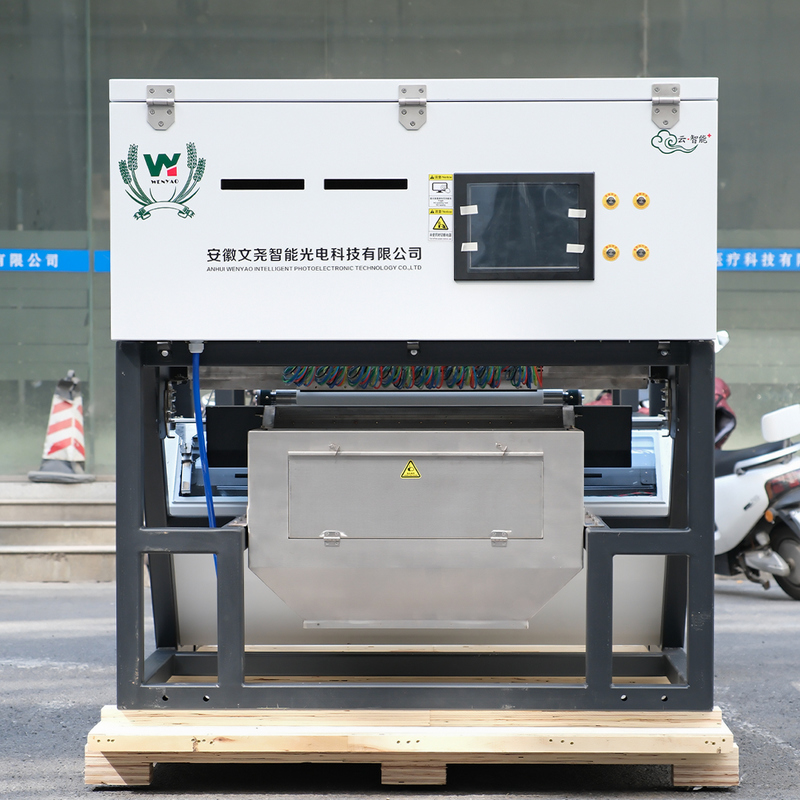

Packing & Delivery

*Process visualization

From manufacturing to shipment, all processes can be supervised in real time according to your requirements.

And we welcome you to visit our factory in person.

In customer site

In Our Europe Customer Working Plant.

In Our Southeast Asia Customer Working Plant.



In Our South Asia Customer Working Plant.

Our Factory&Customer

ANHUI WENYAO Optoelectronic Technology Co., Ltd founded in 2007, which combined with design, manufacture and selling. We manufacture high-tech optical color sorter machine of sorting wheat, rice, tea, melon seeds, grains, coarse cereals, nuts, dried vegetables, dried seafood, plastics, ores, ect. Supply the service to customers from Asia, the Middle East European, South Africa and African markets.

Through countless cooperation and OEM service with international partners, ANHUI WENYAO has streamlined the proper procedures and processes and opened up professional techniques that are ahead of the color sorting field and delivered the highest-quality products to every corner of the world.

Through countless hardwork, we serve customers from all over the world. We have high reputation in domestic, Africa, Middle-East, South-East Asia market. Expect you to join our big family. We will never let you down.

FAQ

1. How to use the machine?

We will supply the Installation instructions or video and our engineers will train your operators.

2. How long about the guarantee period?
One year. And we supply lifelong software upgrade services for our customers.

3. Can you supply the air compressor, air tank and air filters?

Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.

4. Is oversea service available?
Yes, our engineers could go abroad when required.

5.How to calculate Installation personnel cost?

On condition that customer requires to install, our company would like to send 1 Engineer to guide for installation, then customer should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation , local transportation and security when the Engineer arrived.
