CCD Camera Optical Garlic Colour Sorting Peeling Garlic Removing Spotted Machine
Walnut Garlic Cherry Coffee Color Sorter Machine with CE
Wenyao Belt Type Garlic Color sorter is a machine which used for separating the bad black garlic from the raw material through the color difference between the rejection and finished products. color sorter adopting 5400 pixel high resolution CCD camera, advanced image analysis and processing technology, long-life high-efficiency easy maintenance ejector as well as excellent optical system.

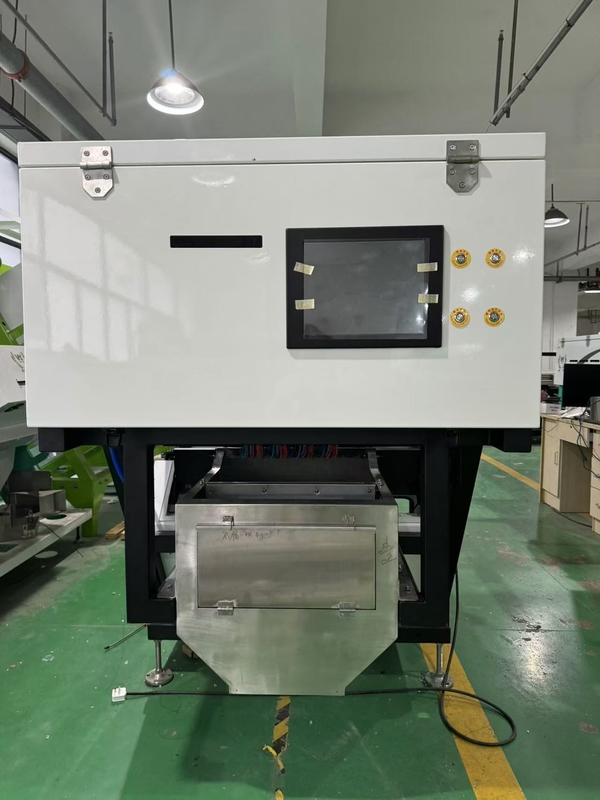

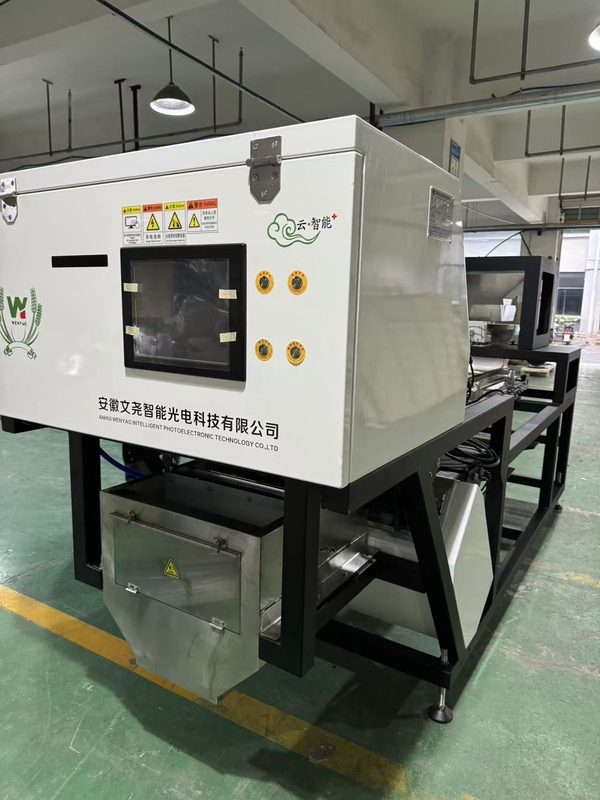

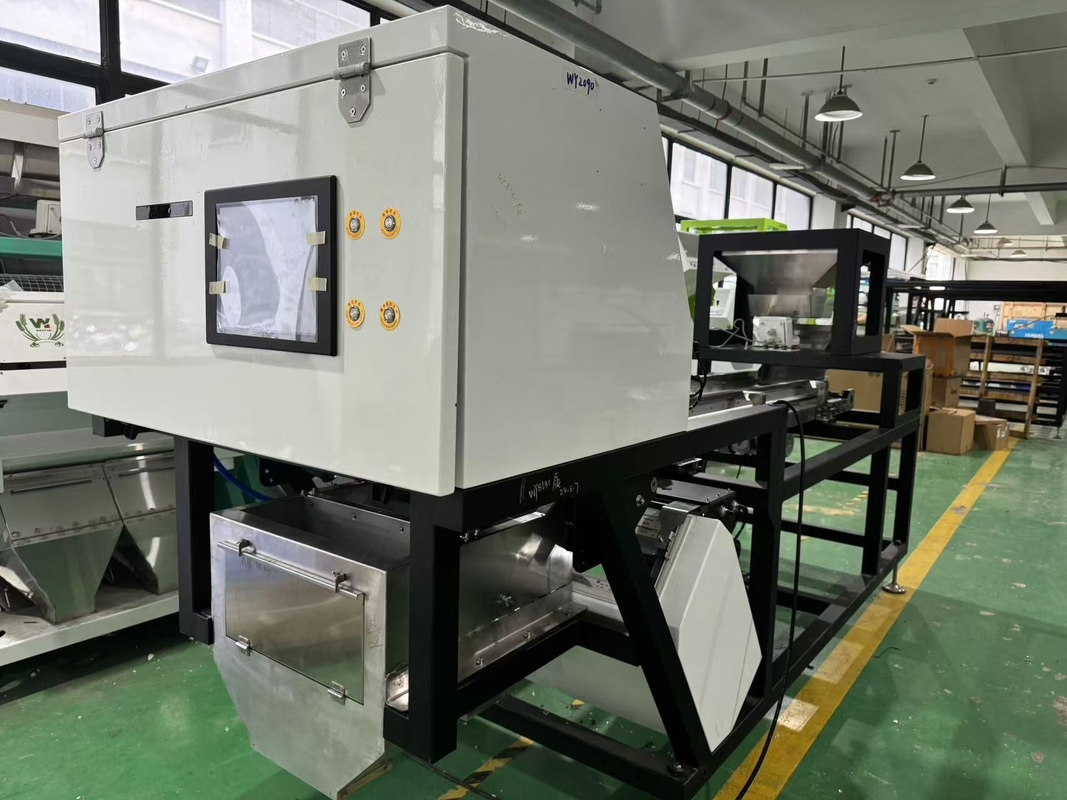

Product show:
Technical Parameters:
| MODEL |
WYB1 |
| Chutes/Channels |
1/64 |
| Throughput(t/h) |
0.5-1t/h |
| Sorting Aaccuracy |
≥99.9% |
| Power |
1.5kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<0.6M3/Min |
| Weight |
450kg |
| Diamension(L*W*H) |
2450*1010*1539mm |
Throughtput:Different impurity with different throughput.
Examples of garlic color sorting:
Sorting Effect
Features:
1. High reliability Our rice color sorter is equipped with cooling system for longer service life and higher stability. Reliable mechanical structure design, simple and effective electrical and optical system, and optimized system structure greatly improve the reliability of the machine.
2. Advanced image acquisition and processing system Our rice colour sorter uses high speed linear array CCD image sensor (5400 pixels) and high accuracy lens to realize image acquisition, which can detect 0.04mm2 heterochromatic regions. A specialized image processing system is used for high speed processing of spectral parameters and shape characteristics.
3. Intelligent image processing algorithm A intelligent algorithm based on color and shape is adopted, and special processing for yellows, stained, pinpoint blackheads etc. is carried out, thus increasing the accuracy of sorting.
4. High quality ejector.Our rice color sorter employs imported ejector for accurate, effective material rejection and long service life.
5. High rejection rate Advanced image acquisition system, intelligent image processing algorithm, coupled with quality nozzle system, result in high rejection rate.
6. Simple operation Simple optical system, precise auto calibration system and user-friendly man-machine interface greatly simplify the machine debugging process and ensure ease of operation.
Our service:
Before sale:no whether where you are,no whether when it is,we will provide help you to know our machine service within 7*24h.
After Sale :
From the date of use machine, we can provide two years free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
Field installation,commissioning and training,overseas service center available,Field maintenance and repair service .
Package and shipment:
FAQ:
1. who are we?
We are the latest color sorter R&D and sales base in hefei city China.We are professional color sorter manufacturer.
2. what can we do for you?
We will provide solutions to improve the quality of your materials. In order to increase the unit price and sales of your materials
3. What is color sorter?
Color Sorters used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.
4. What materials can be sorted
Rice, cereal, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. If you want to sort other materials, please contact our customer service.
